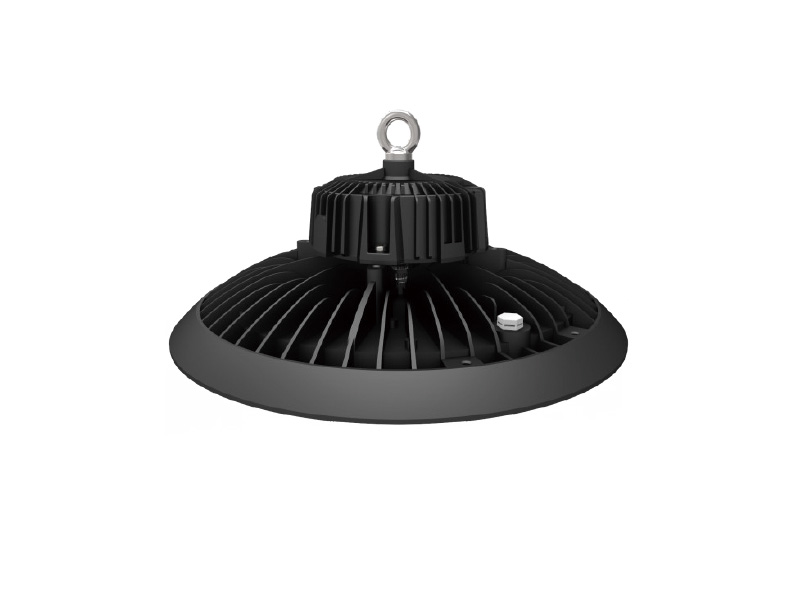

HIGHBAY LIGHT J190-HB

Adoption module exclusive light source and ZAG Lens., luminous efficiency can be rised 8% and light

transmittance up to 98%.

Contact Us

+(86)15058822896

js.chris@jovesun.com

Industrial Park, Yangming Str, Yuyao, Zhejiang, 315400 China

Product Details

Feature

1、Adoption module exclusive light source and ZAG Lens., luminous efficiency can be rised 8% and light

transmittance up to 98%.

2、Die casting aluminum material, strong heat dissipation design, excellent design.

3、Driven by high efficiency constant current and 60% energy-saving than traditional lamps; multi-protection, fully ensures the long life span and high stability.

4、Durable, long lifetime, and last more than 50000 hours

5、Green product, no UV or IR radiation, no mercury pollution.

6、With Excellent exterior design, the lamp is waterproof and dustproof, protecting rate: IP66.

7、Fast response, no flicker; wide operating voltage range.

8、LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.

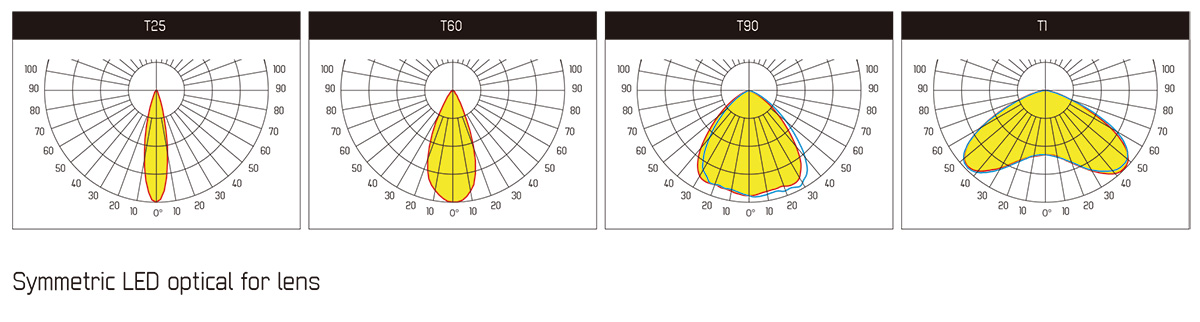

Lighting distribution curve

HIGHBAY LIGHT  J190-HB


Parameter

CodeWattageLuminous EffiLED chipLamp sizeG.W
J190-HB-100100W150lm/w LUMILEDS315*180*320mm2.5kg
J190-HB-120150W390*190*395mm3.4kg
J190-HB-150200W430*190*440mm4.1kg
J190-HB-180240W470*190*480mm4.8kg


Mechanical spec

CCT (k)3000k~6500kPower factor> 95%Power efficiency90%-95%
CRI (Ra)>70(80/90)IP gradeIP 66LED lifespan>50,000hrs

Working
Environment



-40℃-50℃
20%-90%H.R

Storate
temperature

-40℃-85℃
