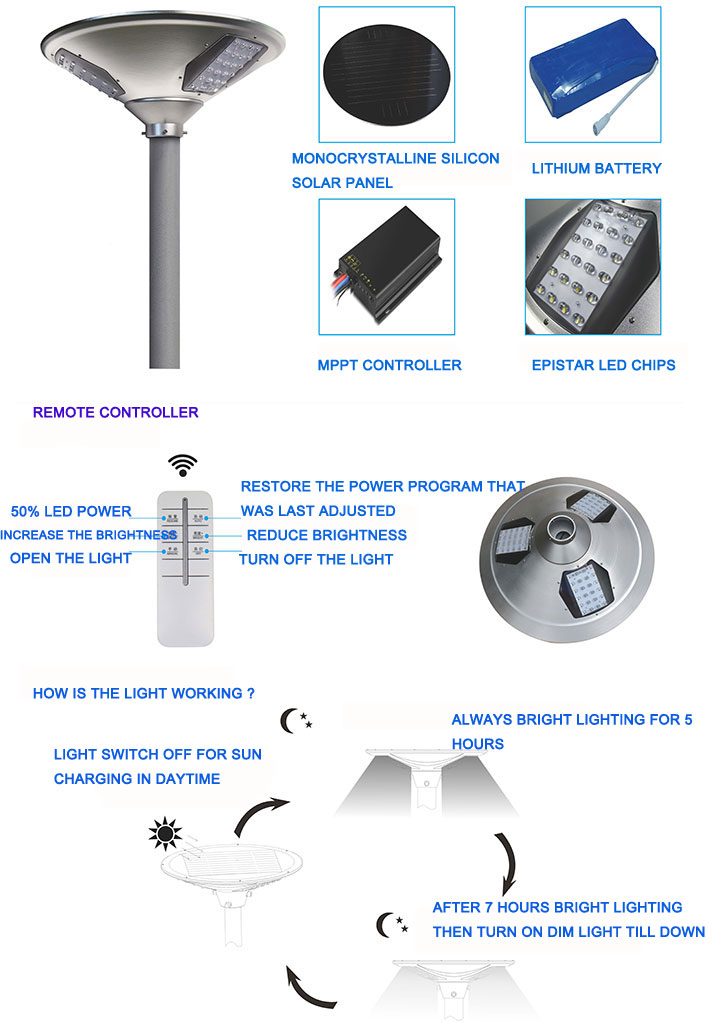

AIO solar street light is an integrated of solar panel,LED light,lithium battery,controller and lighting housing，Daytime solar panel turn sunlight into electricity，with intelligent controlled technology store energy the daylight.During the night when the brightness decrease,solar panel working voltage less than 4V,the sensor will work automatically controller by intelligent induction module.lithium battery turn the electricity to light.Lithium battery discharge to the dawn of illumination increased, the solar panel working voltage is more than 4V, the charge and discharge controller action, lithium battery discharge (off the lights).

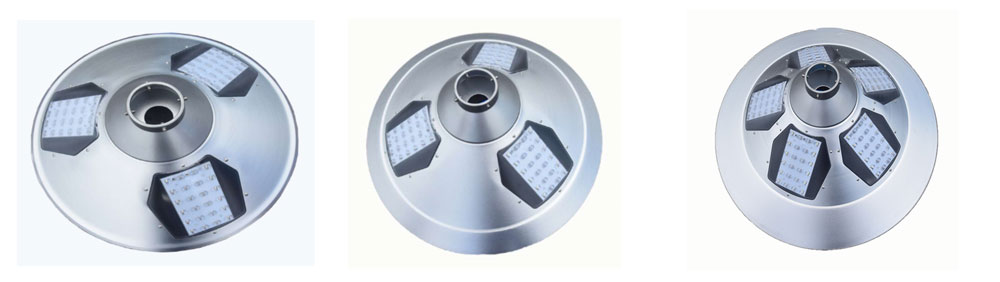

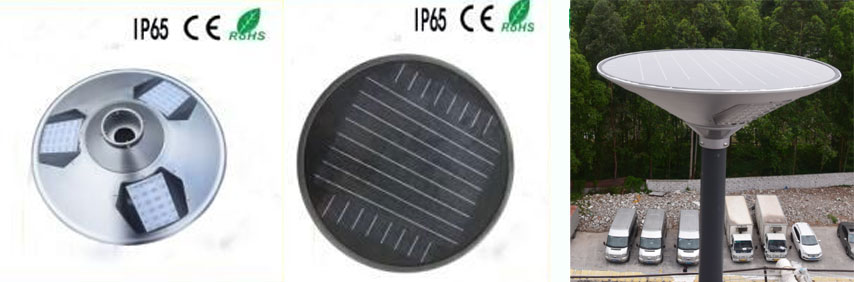

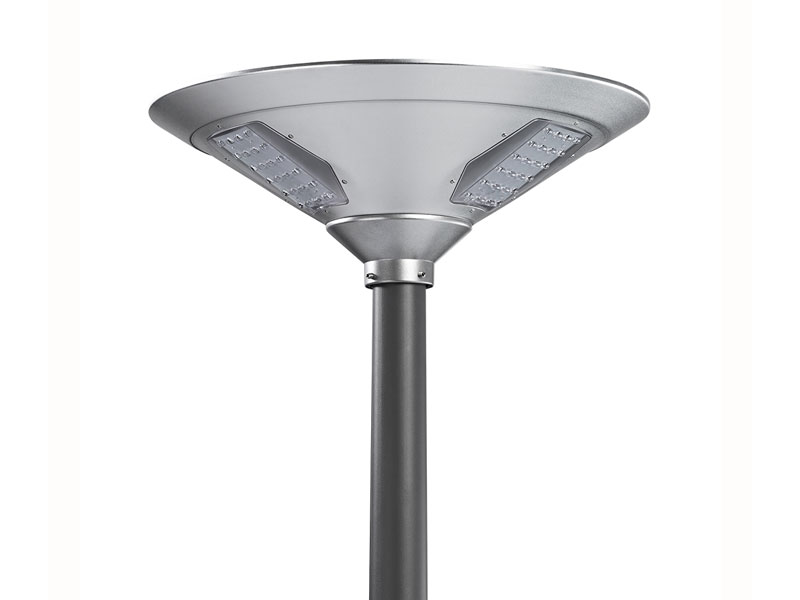

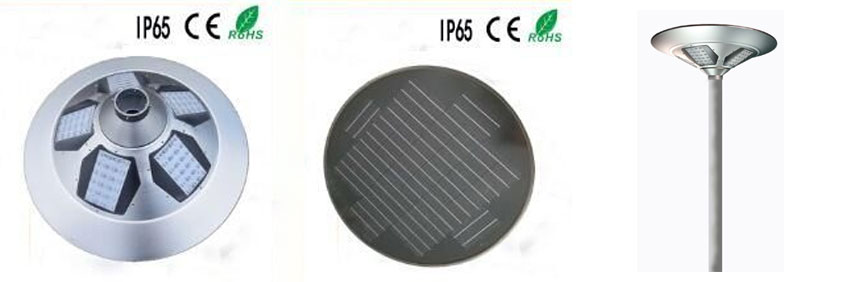

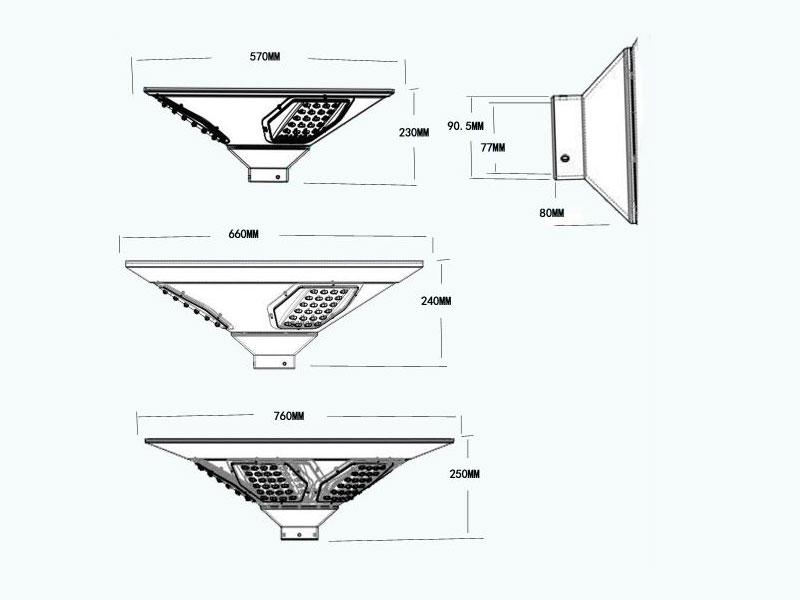

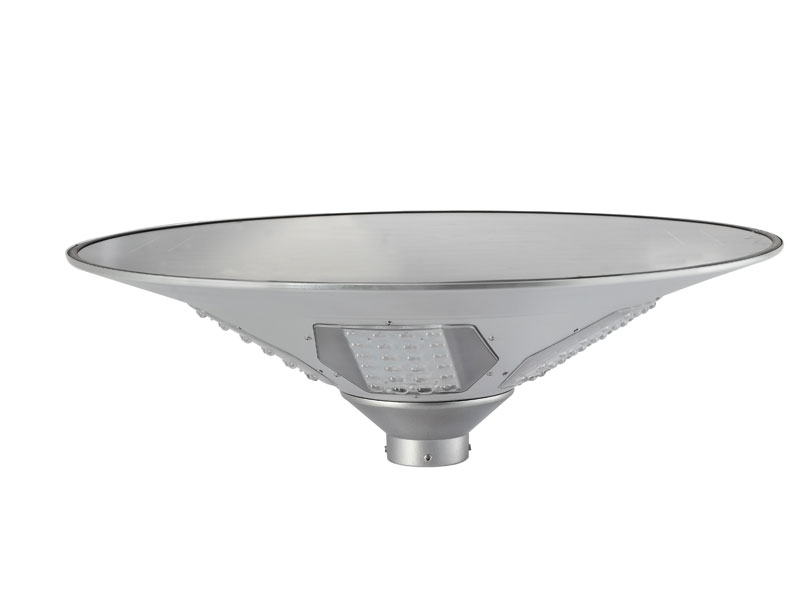

Product picture and size：

Product Feature：

1.High class Integrated Aluminum alloy case .

2.Lighting mode with motion senor

3.360° view angle

4.Over 3 nights lighting after full charge

5.Easy to install,Auto on/off

6.With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，increase/decrease the brightness.

Technology specification：

1. Lumen：2700LM（20W Bridgelux chips3030）

2. Solar Panel: 30W/18VHigh Efficiency Monocrystalline Silicon

3. LifePO4 Battery：144WH/12.8V

4. LED Lamp：3PCS LED Lamp/Each 24PCS LED Chips

5. Waterproof：IP65

6. Working tempreture：-25℃~65℃

7. Material：Aluminium alloy

8. Charging time：9-10by bright sunshine

9. Remote control：Yes

10. Install Pole diameter：70-75mm

11.Mounting Height：3-4M（distance10-14M）

12.Warranty：3 years

Product Feature：

1.High class Integrated Aluminum alloy case .

2.Lighting mode with motion senor

3.360° view angle

4.Over 3 nights lighting after full charge

5.Easy to install,Auto on/off

6.With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，increase/decrease the brightness.

Technology specification：

1. Lumen：4000LM（30W Bridgelux chips3030）

2. Solar Panel: 40W/18VHigh Efficiency Monocrystalline Silicon

3.  LifePO4 Battery：320WH/12.8V

4. LED Lamp:3PCS LED Lamp/Each 24PCS LED Chips

5. Waterproof：IP65

6. Working temperture：-25℃~65℃

7. Material：Aluminium alloy

8. Charging time：9-10hours by bright sunshine

9. Remote control：Yes

10. Install Pole diameter：70-75mm

11.Mounting Height：3-5M（distance10-17M）

12.Warranty：3 years

Product Feature：

1.High class Integrated Aluminum alloy case .

2.Lighting mode with motion senor

3.360° view angle

4.Over 3 nights lighting after full charge

5.Easy to install,Auto on/off

6.With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，increase/decrease the brightness

Technology specification：

1. Lumen：6700LM（50W Bridgelux chips3030）

2. Solar panel: 50W/18VHigh Efficiency Monocrystalline Silicon

3.  LifePO4 Battery：420WH/12.8V

4. LED Lamp:5PCS LED Lamp/Each 24PCS LED Chips

5. Waterproof：IP65

6. Working tempreture：-25℃~65℃

7. Material：Aluminium alloy

8.Charging time ：9-10hours by bright sunshine

9. Remote control：Yes

10.Install Pole diameter ：70-75mm

11. Mounting Height：4-6M（distance 14-21M）

12.Warranty：3 years

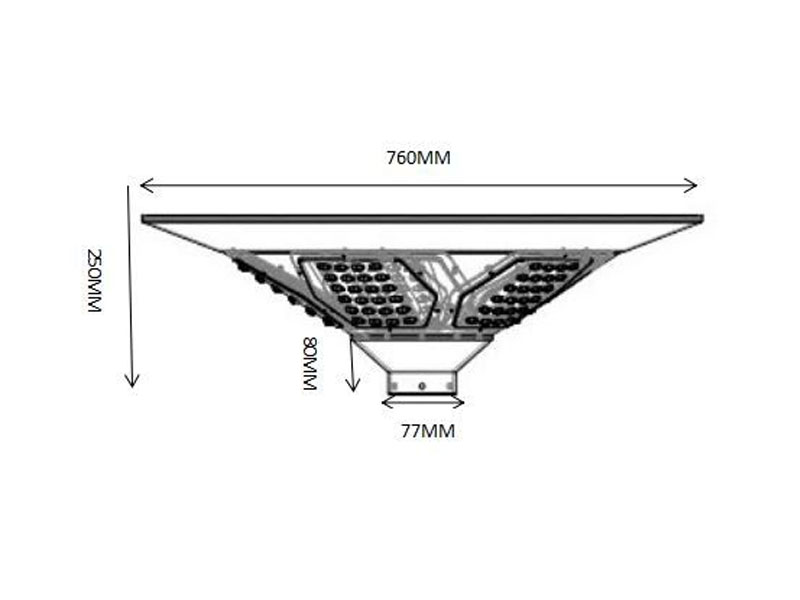

Products Size Excel：

Product  Specification：

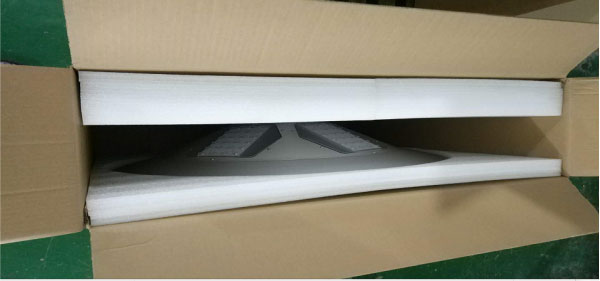

Packing：
