Semi-integrated Solar Led Street Lights
● Patent Design
● Semi-Integrated Solar Led Light ● Large Battery Capacity
● Adjustable Led Panel
● High Brightness, 170LM/W
● OEM/ ODM Available
●3 Years Warranty
Contact Us
+(86)15058822896
js.chris@jovesun.com
Industrial Park, Yangming Str, Yuyao, Zhejiang, 315400 China
Main features
•Innovative split structural design, with good heat dissipation performance.
•Adjustable LED module angle , satisfying various road lighting needs.
•Brand new A+ class LifePO4 battery with large capacity, support 10 days working after fully charging.
•Adopting imported high-brightness Bridgelux 3030 and 5050 led chips, lab testing luminous efficiency up to 210lm/w

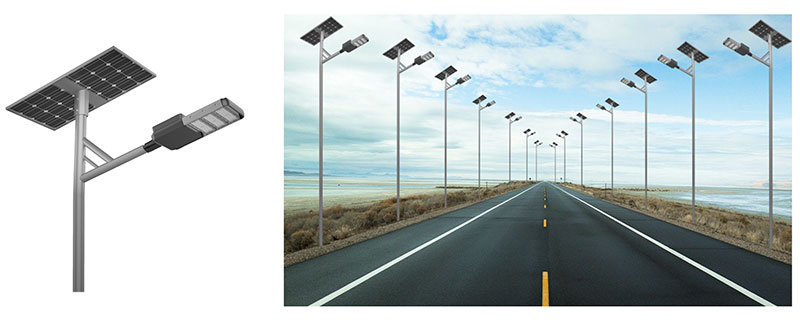

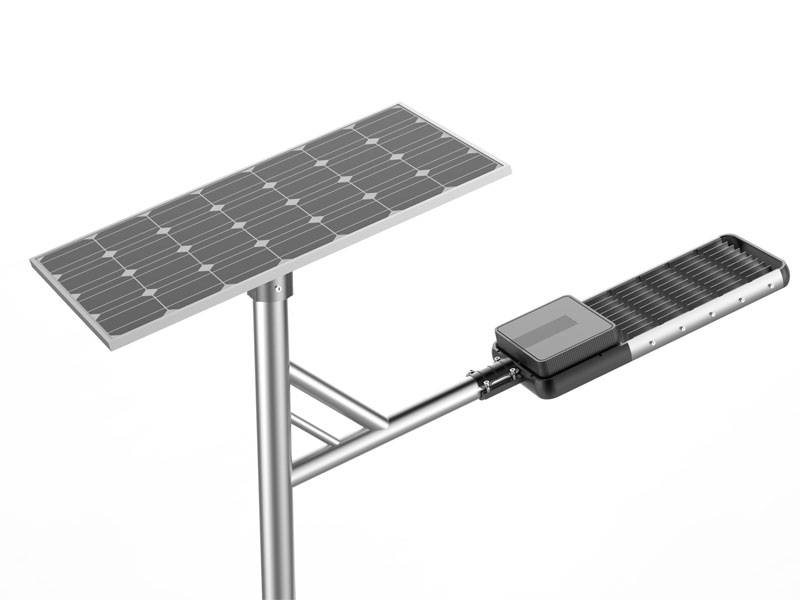

Semi-Integrated Solar Street Lights

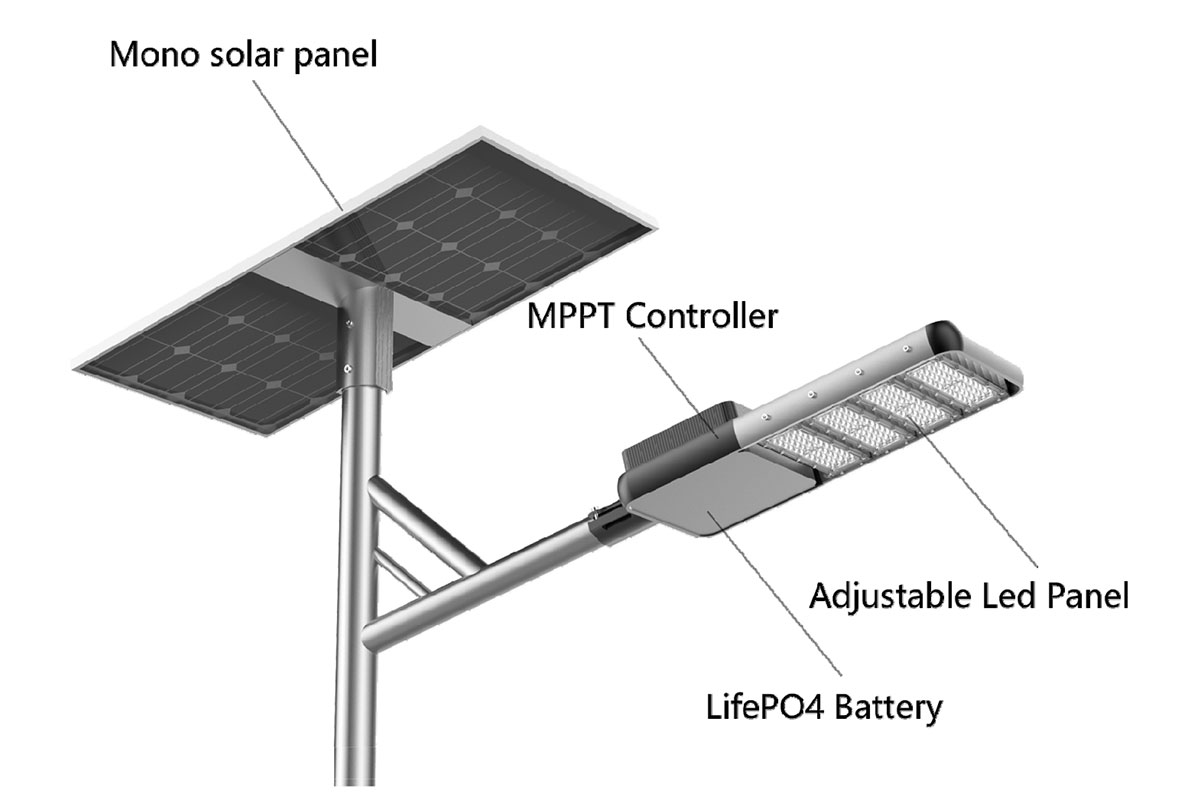

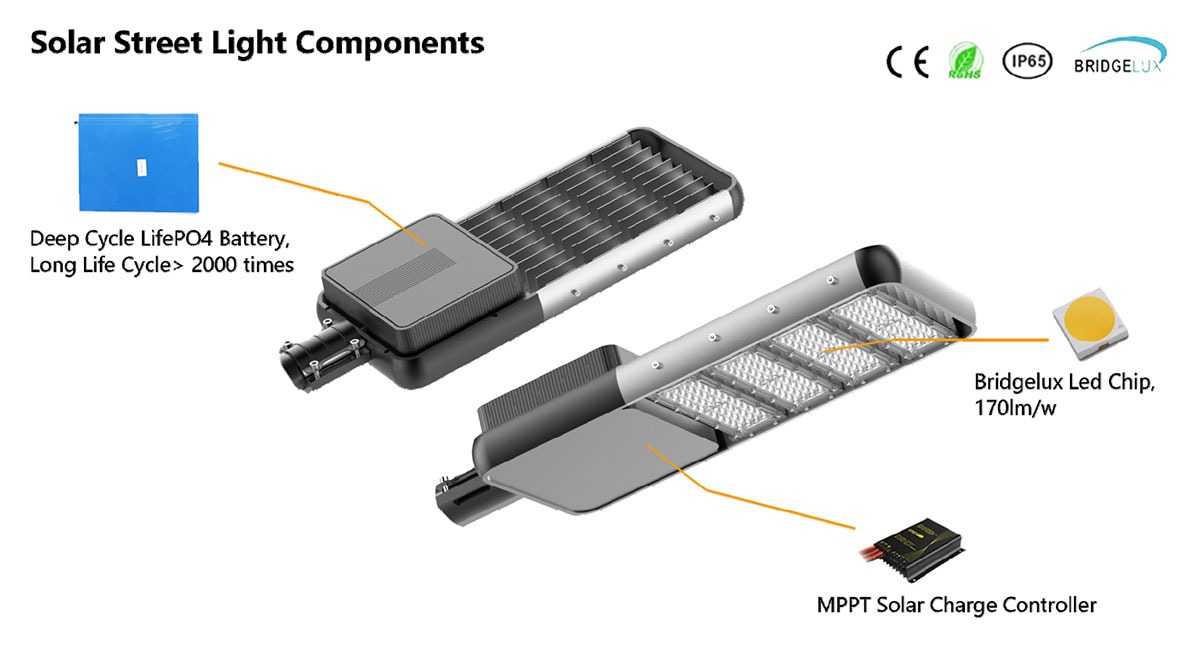

A split solar led solar street light, composed of led lamp, battery, solar panel, and controller.
Solar panel, battery and led lamp separated

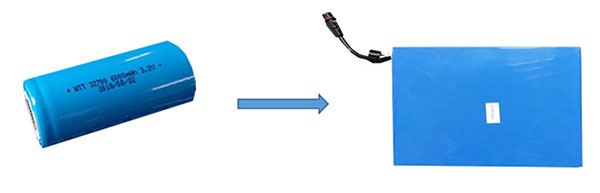

New LifePO4 Battery
•>2000 cycles
•5-8 years lifespan (20% loss)
•High-temperature resistance
•In-built explosion-proof valve, high safety performance

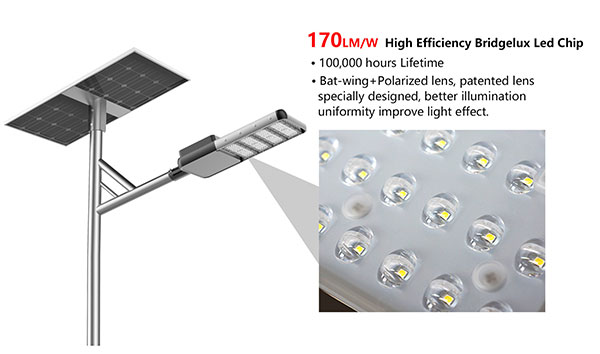

High Lumens Led Lamp

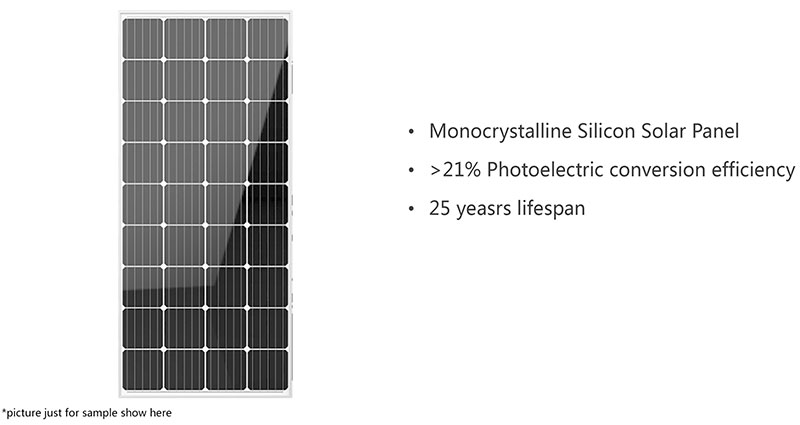

High Efficiency Mono Solar Panel

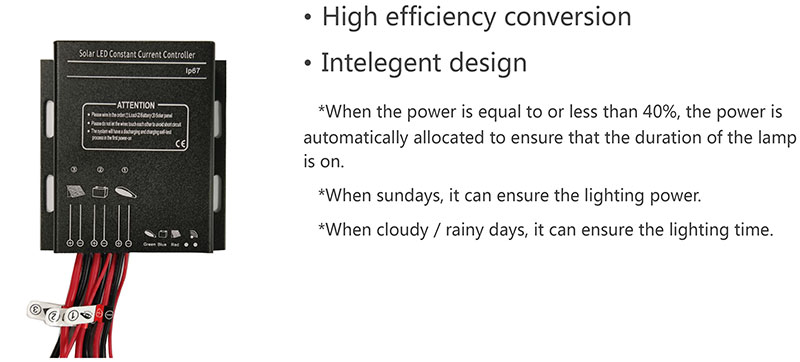

MPPT Controller

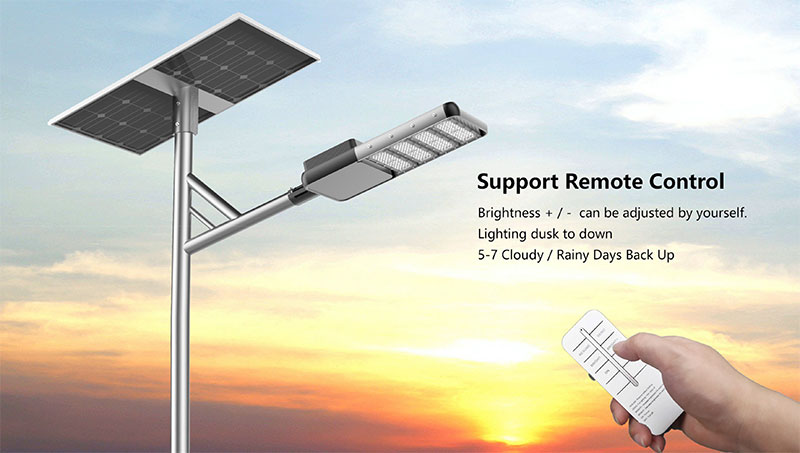

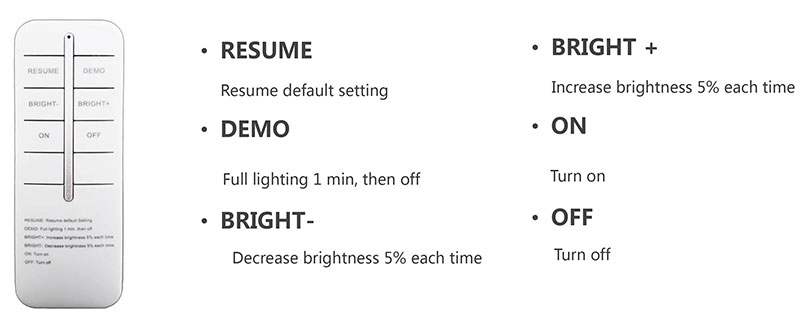

Remoter instruction

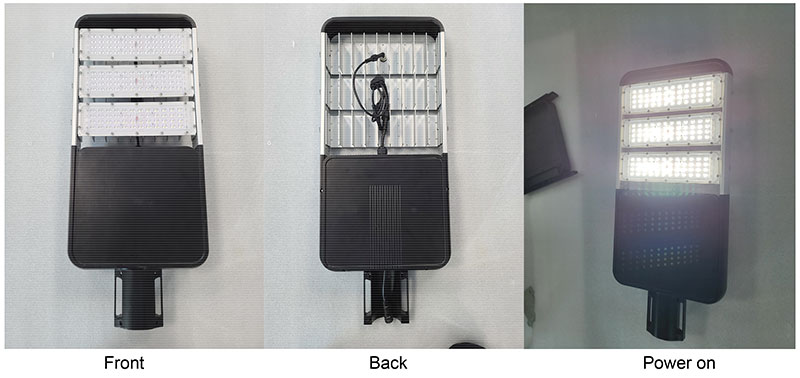

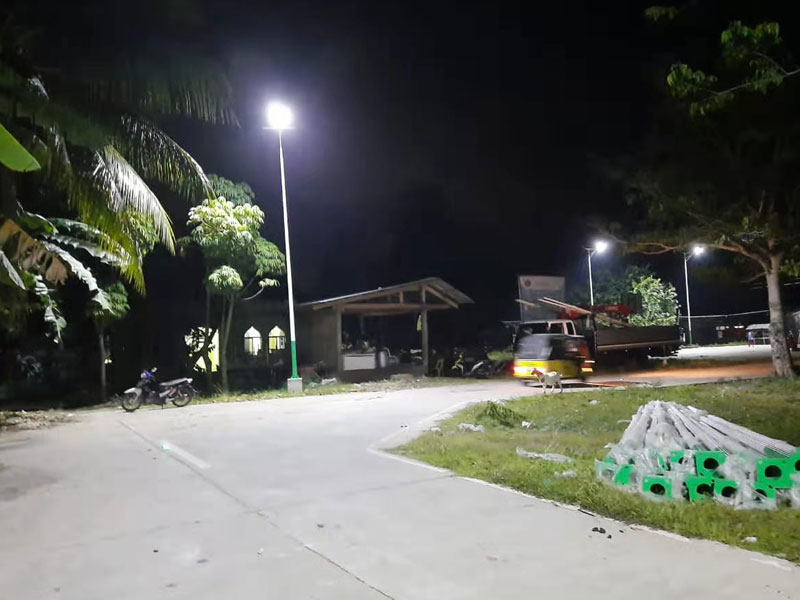

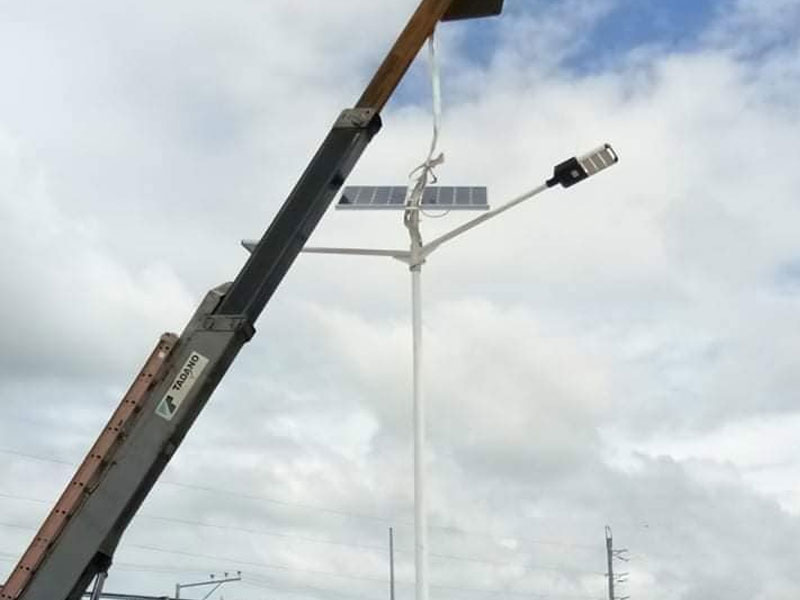

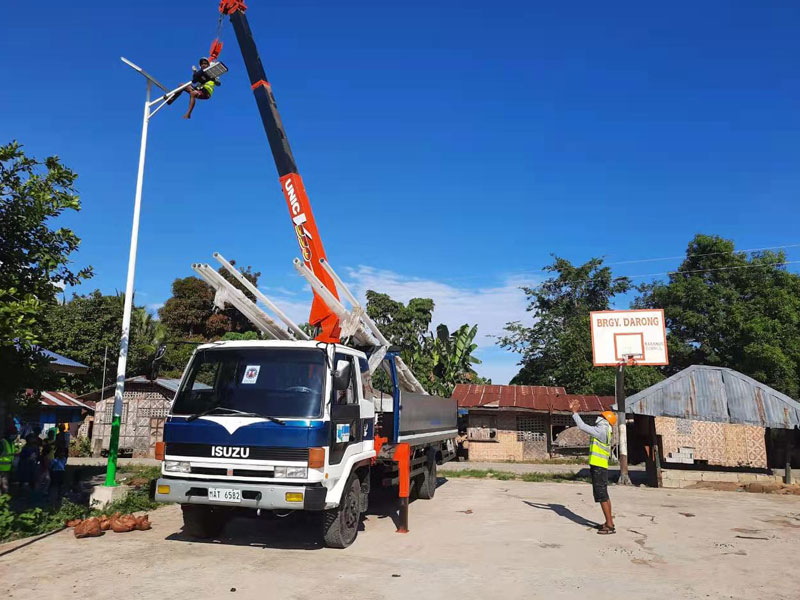

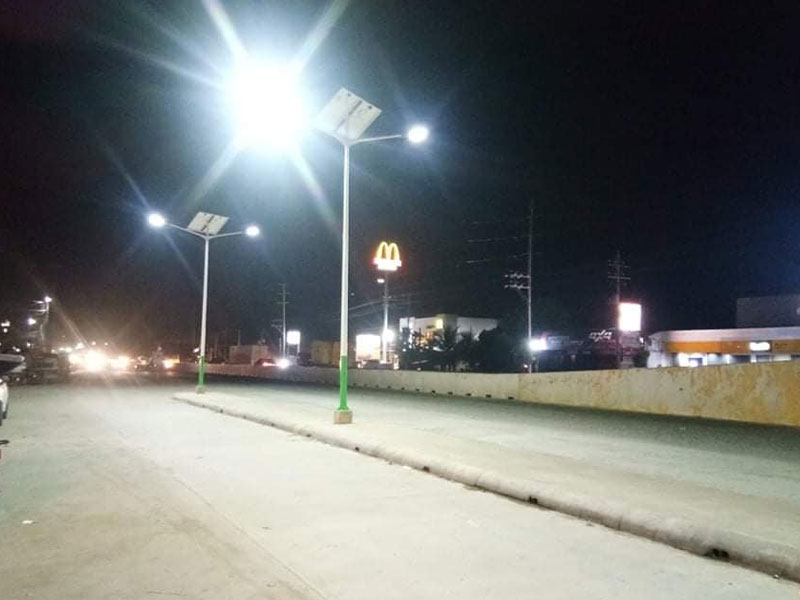

Real Photos of 60W

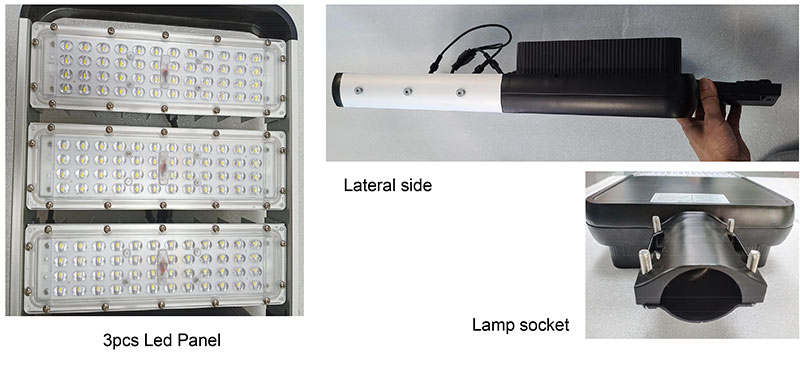

Details
Specifications
| Led Source | 30W (144pcs leds) | 40W (144pcs leds) | 50W (144pcs leds) | 60W (144pcs leds) | 80W (192pcs leds) | 100W (192pcs leds) | 120W (192pcs leds) |
| Mono Solar Panel | 18V 40W | 18V 50W | 18V 65W | 18V 80W | 18V 100W | 18V 130W | 18V 170W |
| LifePO4 Battery | 12.8V 18AH | 12.8V 24AH | 12.8V 30AH | 12.8V 36AH | 12.8V 42AH | 12.8V 54AH | 12.8V 60AH |
| Color Temperature | 2700K-6500K | ||||||
| Brightness | 5100LM | 6800LM | 8500LM | 10200LM | 13600LM | 17000LM | |
| Working Time | 12- 15hours, 5-7 cloudy/ rainy days | ||||||
| Charging Time | 6-8hours | ||||||

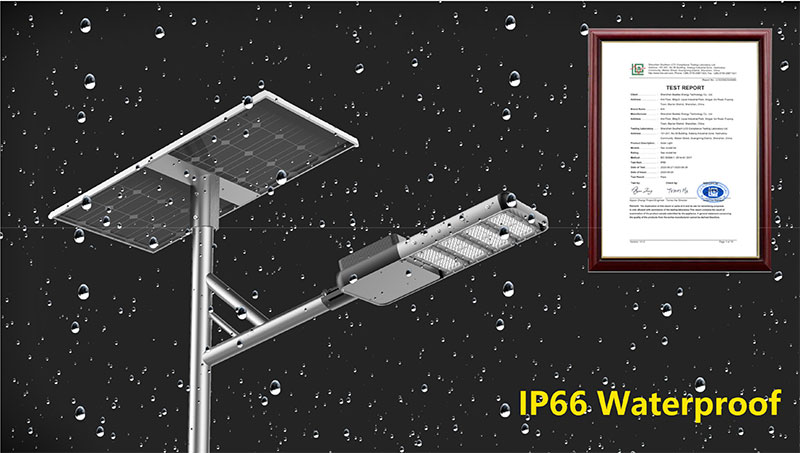

| IP Rating | IP66 | ||||||
| Mounting Height | 4-6m | 5-7m | 6-8m | 7-9m | 8- 10m | 9-12m | 10- 12m |
| Space between 2 lamps | 10-20m | 15-25m | 20-30m | 20-30m | 25-35m | 30-40m | 30-40m |
| Warranty | 3 years / 5 years | ||||||
| Package Size | Lamp: 695*300*115mm Solar panel: 610*580*80mm | Lamp: 695*300*115mm Solar panel: 750*580*80mm | Lamp: 695*300*115mm Solar panel: 820*580*80mm | Lamp: 695*300*115mm Solar panel: 1090*580*80mm | Lamp: 785*300*115mm Solar panel: 1290*580*80mm | Lamp: 785*300*115mm Solar panel: 1130*580*80mm | Lamp: 785*300*115mm Solar panel: 1490*580*80mm |
| Gross Weight | Lamp: 4.6KG Solar panel: 5.2KG | Lamp: 5.2KG Solar panel: 6.3KG | Lamp: 6KG Solar panel: 7.2KG | Lamp: 6.6KG Solar panel: 9KG | Lamp: 7.5KG Solar panel: 11KG | Lamp: 9KG Solar panel: 13.2KG | Lamp: 9.6KG Solar panel: 15.8KG |
Single Arm
